Metal Gas X Ray Machine 160KV Auto Parts NDT Machine in Cambodia
Our industrial solutions have a wide range of advantages
Sophisticated proprietary image analyzing algorithms which allow to realize reliable automatic detection systems of non-conformities.
Statistics, computer assisted measurement, post-analysis, remote workstations, archiving, integration into customer’s network and production management systems.
Modular design, broad range of accessories and options for maximum compliance with customer’s production and quality assurance processes
Flexibility and compact design our industrial installations can be adopt into the most manufacturing chains in combination with operator or automatic control.
Ultra low radiation dose is an effective solution for scanning different automotive parts loaded on the hanging conveyor line.

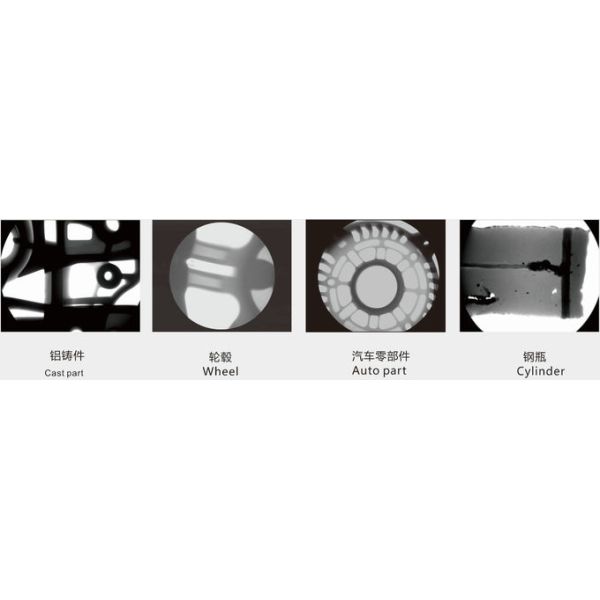

Applications:
●Cast parts and pressure Vessels
●Wheel,Tires and Metal parts
●Steel pipe,Cylinder and Wood
| System Parameters | Dimensions | 2100mm*1549mm*2468mm(L*W*H) |
| Equipment weight | 3.5T |
| Power | 6KW |
| Maximum penetration(AL/FE) | 100mm/20mm |
| Detection range | Φ500*800mm |
| Load weight | 50kg |
| Work environment | 5-40° ≤80%HR |
| Install power | Three-phase five wire system AC380V |
| X-ray leakage dose rate | ≤1uSv/h |
| X-ray Generator | Tube voltage | 160kV |
| Power | 480W |
| Focal size | 0.5mm |
| Detector | Image area | 145mm x 145mm |
| Resolution | 3.0LP/mm |
| Detector ( Selection FPD ) | Image area | 17’’x17’’ |
| Pixel matrix | 3072mm*3072mm |
| Pixel size | 139μm |
| Frame rate | 9fps(1x1)30fps(2x2) |
